The main fields of application are:
- Subsea Stab Plates
- Subsea Trees
- ROV mateable applications

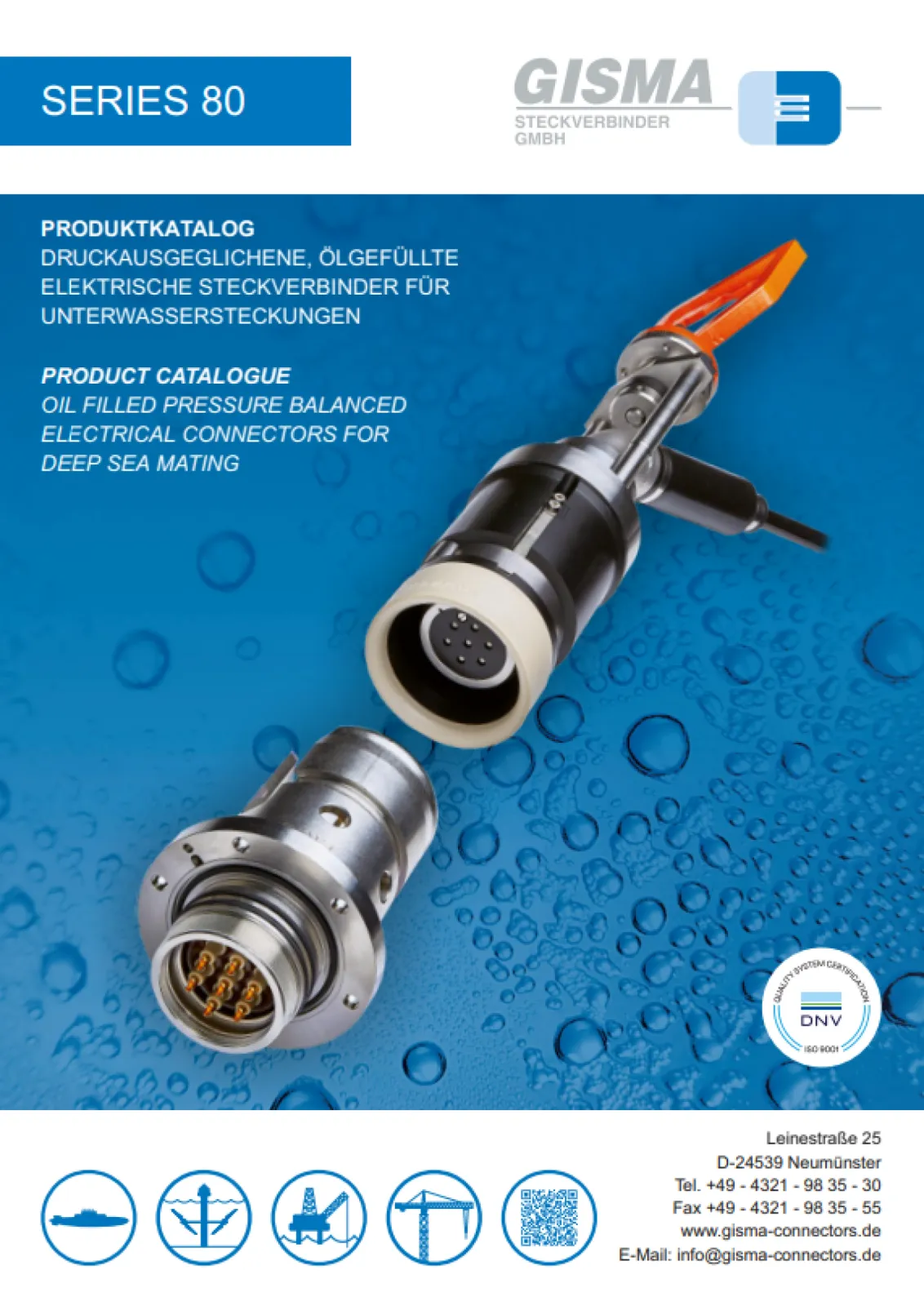

The fluid filled pressure balanced electrical connector series 80 is specially designed for deep sea mating.

Constant and low mating forces minimize the material stress at all designed pressure and depth capabilities.

The high quality of series 80 is based on a very reliable sealing system, a pressure balanced system and the new GISMA flushing device.

Design features:
- underwater mateable
- constant mating forces at every water depth
- pressure balanced plug
- flushing device for an internal cleaning process during mating
- high performance materials (FVMQ, PEEK, titanium) for long term use
- modular design system
- new maintenance features
- design life time 25 years
- different keyways available
- insulation distance according to DIN EN 60664-1 (VDE 0110-1)

Design features series 80 receptacle:
- longitudinally sealed contact design with 2 independent double O-ring-seals (4 O-rings in total)
- gold plated PEEK isolated beryllium copper pin contact
- shock- and pressure resistant epoxy casting at the receptacle's rear
- receptacles are designed for air and oil-filled junction boxes
- scoop proof design
