The main fields of application are:
- Offshore Industry
- Naval Technology
- Marine Research
- Renewable Energy
- Industry Applications

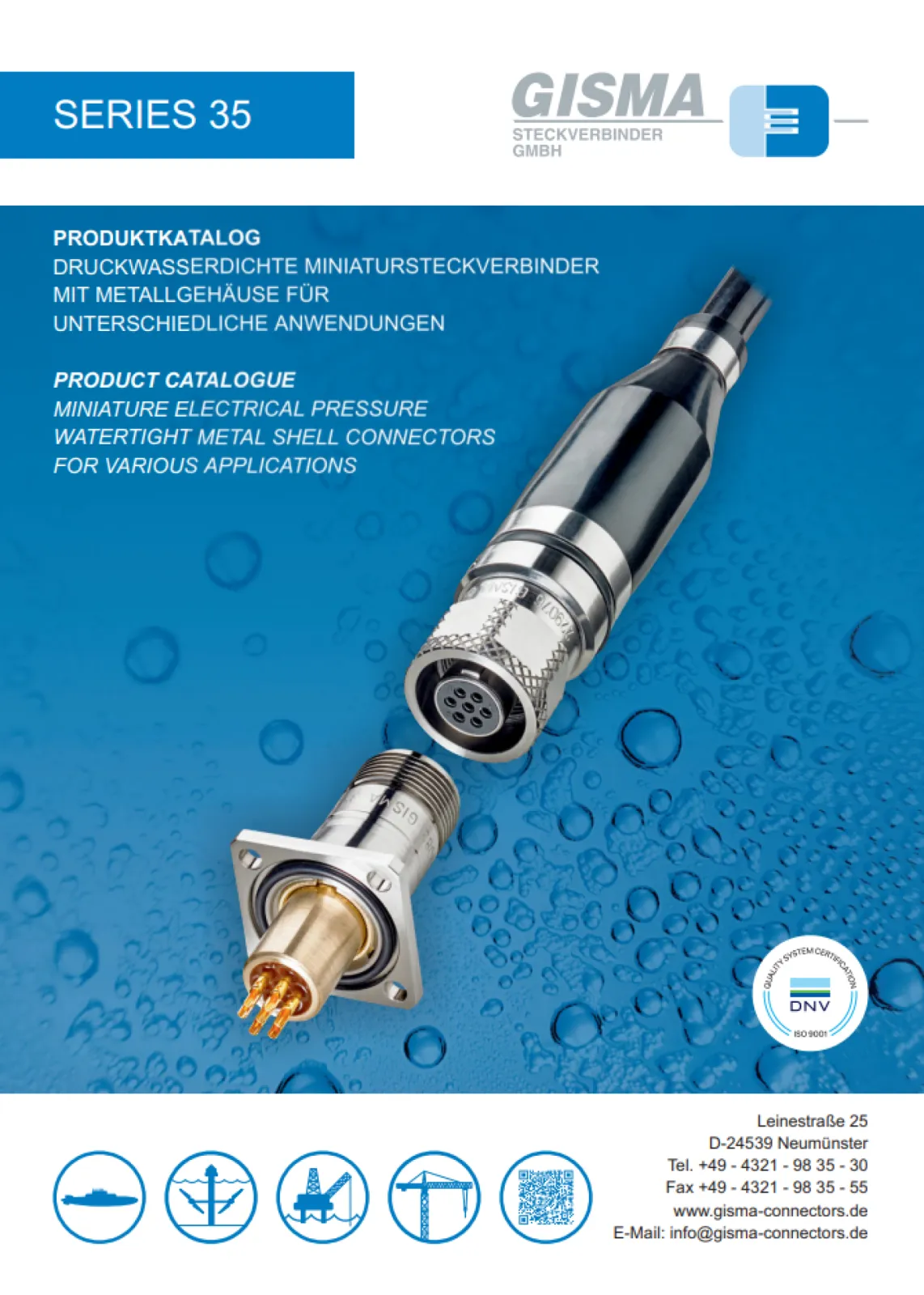

The series 35 miniature connectors with robust metal housing are ideal for harsh environments and underwater applications, also if small design dimensions are required.

Due to the compact dimensions this series is ideal for small sensor housing.

Under advanced environmental condition the longitudinally watertight vulcanised elastomer insulator with insulation cones guarantee high operational reliability. With the double O-ring sealing in the mating area high long-term performance is achieved for different applications.

Special versions for welding installation are available.
The replaceable, twist-protected endbell adapter also enables the connection of special cables to the connector.

Design features:
- available in bronze, stainless steel and titanium
- high pressure watertightness
- double O-ring-sealing in the mating area
- contact arrangement from 3 to 19 contacts
- operating voltage up to 225 V
- operating current up to max. 15 A
- test pressure up to 500 bar
- elastomer insulator with extended conical insulation design
- robust contacts
- open face longitudinally watertight receptacles
- dry mating capability
- safe metric locking thread
- robust keyway
- insulation distance according to DIN EN 60664-1 (VDE 0110-1)
